Electronic PCB Circuit Boards Cutting Small and Large Pre-scored PCB Describe:
Fast, Accurate , Economical PCB Separation for Panels up to 460mm Long

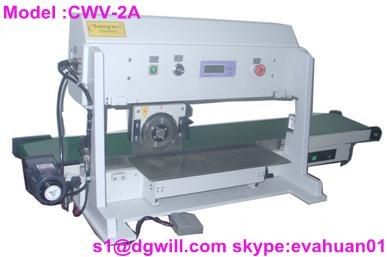

The CWV-2A precision depaneler combines a topside circular cutter with a below-board linear knife for smooth , burr-free separation of PCBs along the scoring groove . The design of the CWV-2A eliminates stress on the board and the components during the separation process , preventing post-breakout-related board , component and solder joint defects even when components are located as close as 1 mm to the scoring line .
Features:
1 . Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4 . Handle Intermittent scoring or cut-outs
5 . Board with projected component can be cut precisely
6 . Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
9 . three eletric eye
Specification:
Cutting length : 460 MM
Separation speed:100-500mm /s
Pcb Separator Machine Size :880mm X 460mm X 560mm
Pcb Separator Machine Weight : 185 kg
